High-performance TPU Pneumatic Tubing_Kenaisi Technology Group

Features

Material: Polyurethane

Hardness: 95A-98A

Fluid admitted: Ait

Environment and fluid temperature: -20°C~+70°C

Features: The ester-based PU tube,featuring excellent pressure rewiwtance,weather resistance,corrosion resistan and fiexiblity, used for the piping of air concerned system.

Application: Industrial automation,pneumatic tools,tube for water and fluids,vacuum tudes,protective sleeve for metal and electronic products.

	PU	PU-S	PU-M	PU-ZR	PU-UV
Material	Polyurethane	Palmitin	Polyether	Flame Retardant	UV Anti-Static
Fluid Admitted	Air	Air	Air、Water	Air	Air
Service Pressure Range Kgf/Cm²	0~10	0~8	0~8	0~8	0~8
Hardness	95~98A	85~90A	85~95A	85~95A	85~90A
Standard	ROHS		Hydrolysis Resistance,Anti-Bacteria FDA	V-0U1-94Standardv-0	Level 4
Service Temperature	-20~70℃C

Parameter

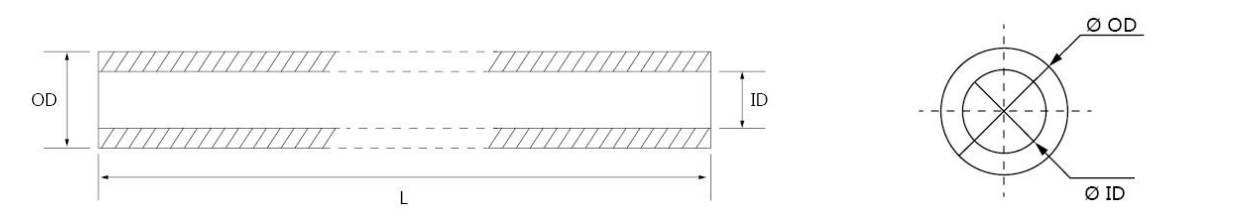

ltem No	OD	ID	L	Min.bend radius at 20°C(mm)	Min.workingpressure at 20°C (kgf/cm²)
PU-0320	3mm	2mm	200m	10mm	0~10
PU-0425	4mm	2.5mm	200m	10mm	0~10
PU-0640	6mm	4mm	200m	15mm	0~10
PU-0855	8mm	5.5mm	100m	20mm	0~10
PU-0850	8mm	5mm	100m	20mm	0~10
PU-1065	10mm	6.5mm	100m	30mm	0~10
PU-1280	12mm	8mm	100m	35mm	0~10
PU-1410	14mm	10mm	100m	55mm	0~10
PU-1612	16mm	12mm	100m	65mm	0~10
PU-1/4	6.35mm	4.57mm	200m	15mm	0~10
PU-3/8	9.52mm	6.35mm	100m	30mm	0~10
PU-1/2	12.7mm	8.46mm	100m	35mm	0~10
